Product
The purity of TU2 / C10200 oxygen-free copper reaches 99.95%, the oxygen content is not more than 0.005%, and the total impurity content is not more than 0.05%.
TU2/ C10200 oxygen-free copper has excellent cold and hot processing performance. Good forgeability.
Online consultation
Product Introduction
Copper strip factory, more than 10 years manufacture experience, attained ISO9001, work on OEM and ODM projects.
1.Introduction of the C10200 Oxygen free copper strip
The purity of TU2 / C10200 oxygen-free copper reaches 99.95%, the oxygen content is not more than 0.005%, and the total impurity content is not more than 0.05%.
TU2/ C10200 oxygen-free copper has excellent cold and hot processing performance. Good forgeability.
2.Grade and temper for C10200 Oxygen free copper strip
Grade: TU2 ,C102, C10200, CDA102
Temper: O(M), 1/4H(Y4), 1/2H(Y2), H(Y), HH(T)
3.Chemical composition of C10200 Oxygen free copper strip
TU2/ C10200 Chemical composition
Cu+Ag：≥99.95
Sn：≤0.002
Zn：≤0.003
Pb：≤0.004
P：≤0.002
Ni：≤0.002
Fe：≤0.004
Sb：≤0.002
S：≤0.004
As：≤0.002
Bi：≤0.001
O：≤0.003
Impurities%：≤0.05
4.Dimension and tolerance of C10200 Oxygen free copper strip
Thickness | width | ||||||||||
| ≤200 | ＞200～400 | ＞400～600 | ＞600～1000 | |||||||
| Thickness tolerance / ± | ||||||||||
| Ordinary Level | Higher | Ordinary Level | Higher | Ordinary Level | Higher | Ordinary Level | Higher | |||
0.10～0.20 | 0.010 | — | 0.015 | 0.010 | 0.015 | 0.010 | — | — | |||
＞0.20～0.30 | 0.015 | 0.010 | 0.020 | 0.015 | 0.020 | 0.015 | — | — | |||
＞0.30～0.50 | 0.020 | 0.015 | 0.025 | 0.020 | 0.030 | 0.020 | 0.050 | 0.040 | |||
＞0.50～0.70 | 0.030 | 0.025 | 0.035 | 0.030 | 0.040 | 0.035 | 0.060 | 0.050 | |||
＞0.70～1.10 | 0.040 | 0.035 | 0.045 | 0.040 | 0.050 | 0.045 | 0.070 | 0.060 | |||
＞1.10～1.50 | 0.050 | 0.045 | 0.055 | 0.045 | 0.060 | 0.055 | 0.080 | 0.070 | |||
＞1.50～2.50 | 0.055 | 0.050 | 0.060 | 0.055 | 0.080 | 0.070 | 0.100 | 0.090 | |||
5.Characteristics of C10200 Oxygen free copper strip
Characteristics of OFHC copper are:
Grade | Density g/cm3 | Conductivity /% IACS is not less than | Resistivity / ∩ · mm2 / m is not greater than |
TU2 /C1020 | 8.94 | 100 | 0.017 241 |
6.Application of Oxygen free C10200 copper strip
TU2 /C10200 Oxygen-free copper are mainly used in electronics industry and electric vacuum devices and instruments and meters.Generators, busbars, cables, switchgear, transformers and other electrical equipment.

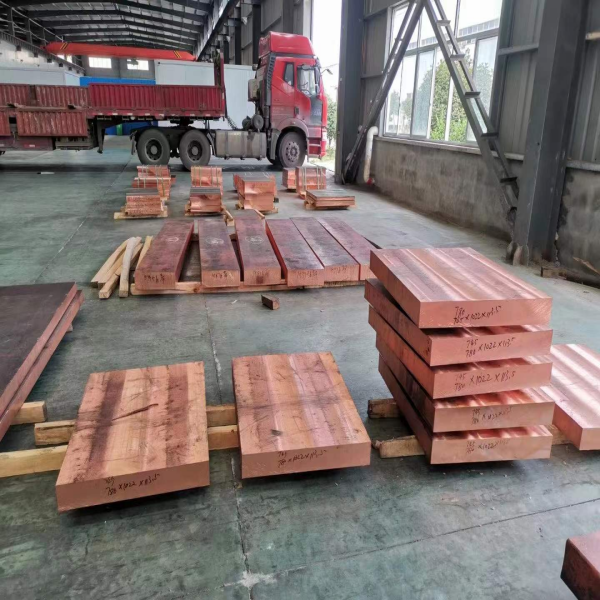

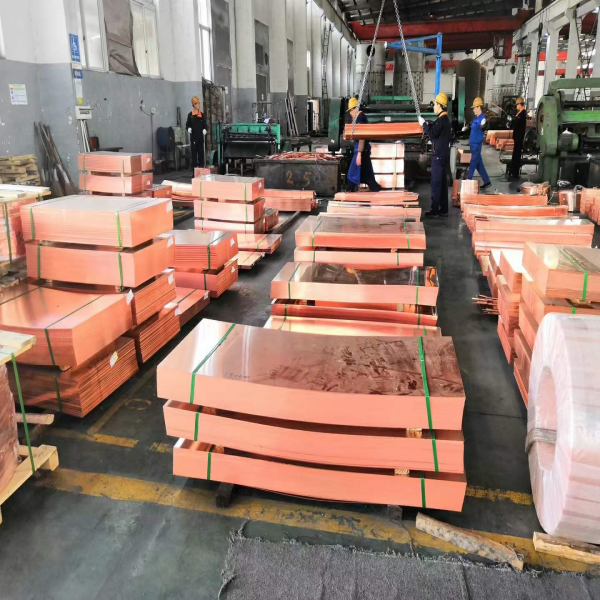

7.Manufacture plant of C10200 Oxygen free copper strip
8.Tests and inspection for C10200 Oxygen free copper strip
Test instrument : Metallographic Microscope; Digital Light Processor; Strength Tester; Hardness Tester.
9.Mill certificate for C10200 Oxygen free copper strip
10. Packing and shipping for C10200 Oxygen free copper strip
Packing:
First wrapped by anti-rust paper, second wrapped by plastic film, then packed by wooden box or wooden pallet .
Shipping:
We will choose the best way according to customer’s requests.
1. By Air, to the indicated airport.
2. By Express (FedEx, UPS, DHL, TNT,EMS), to the indicated address.
3. By Sea, to the indicated sea port.
11.Questions and Answers
a1. Do you have ISO certificate?
Yes, we obtained ISO9001
a2. How long is your delivery time forOxygen free copper strip?
If the master coil is available, 3-7 days do slitting will be ready , if not, will need 20-25 days for new production.
a3. Can you help us to choose suitable material?
Yes, we can recommend the most suitable material according to your application.
a4. How do you control quality?
We produce strictly according to customer’s drawings and requests, here are strict control plan in every process, full check of each parts, strive to provide customer 100% quality products, ROHS/SGS test report, material certificate are available.
a5. Do you provide sample? Free or charge?
Yes, if the sample in stock available, free of charge, if not, need to charge some mfg cost.
