Product

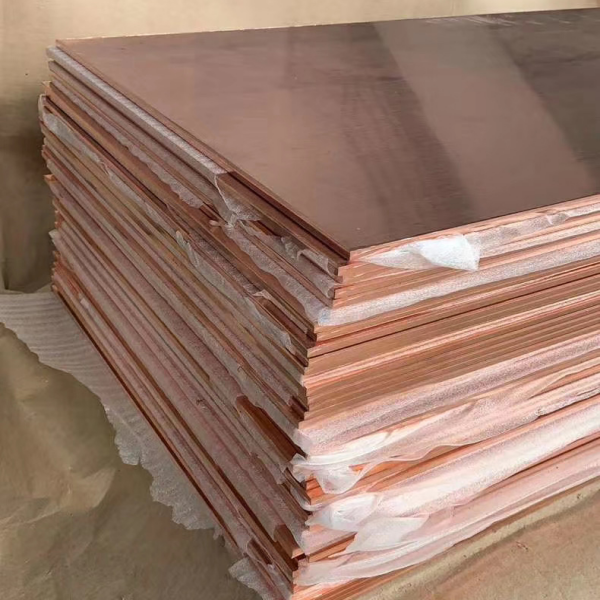

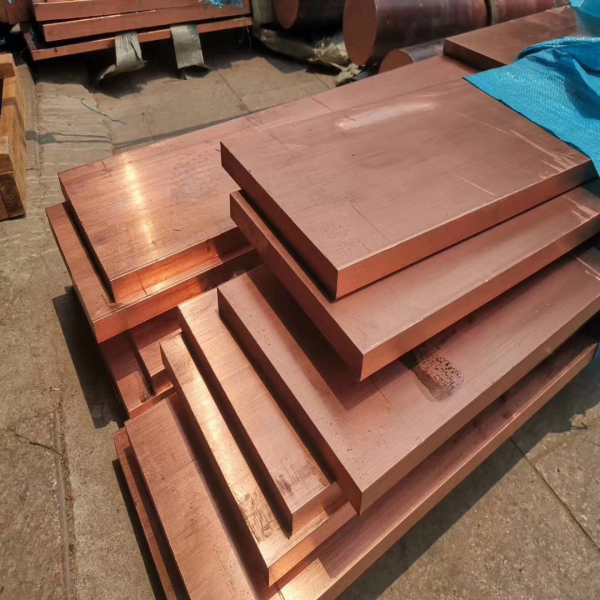

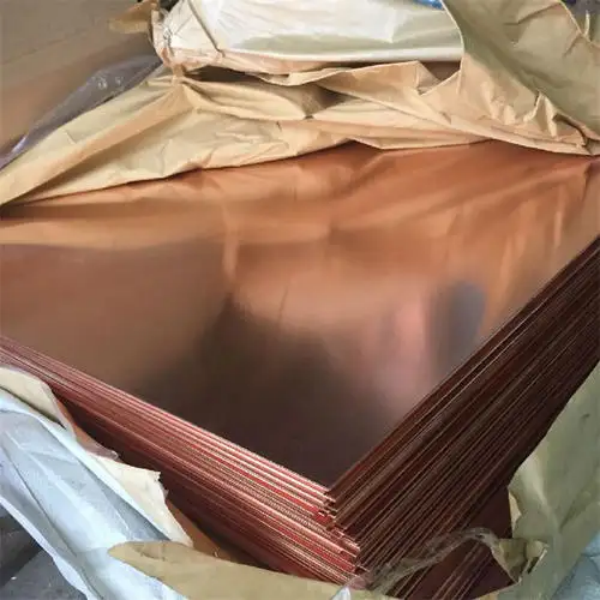

C11000 Electrolytic Tough Pitch (ETP) Copper Sheet & Plate. We carry a very large range of sizes and will cut the material to length. C11000 Electrolytic Tough Pitch (ETP) Copper is produced by the direct conversion of selected refined cathodes and castings under carefully controlled conditions to prevent contamination of the pure oxygen-free metal during processing. The method of producing OFHC copper ensures extra high grade of metal with a copper content of 99.99%. With so small a content of extraneous elements, the inherent properties of elemental copper are brought forth to a high degree.
Online consultation
Product Introduction
C11000 Electrolytic Tough Pitch (ETP) Copper Sheet & Plate. We carry a very large range of sizes and will cut the material to length. C11000 Electrolytic Tough Pitch (ETP) Copper is produced by the direct conversion of selected refined cathodes and castings under carefully controlled conditions to prevent contamination of the pure oxygen-free metal during processing. The method of producing OFHC copper ensures extra high grade of metal with a copper content of 99.99%. With so small a content of extraneous elements, the inherent properties of elemental copper are brought forth to a high degree.
This is the most common copper. It is universal for electrical applications. ETP has a minimum conductivity rating of 100% IACS and is required to be 99.9% pure. It has 0.02% to 0.04% oxygen content (typical). Most ETP sold today will meet or exceed the 101% IACS specification. As with OF copper, silver (Ag) content is counted as copper (Cu) for purity purposes.
C11000 SHEET TYPICAL USES
Some of the typical areas that C11000 is used in, is as follows:
Building Fronts, Gutters, Skylight Frames, Roofing, Flashing, Downspouts, Spouting
Pressure Vessels, Chemical Process Equipment, Chlorine Cells, Chimney Cap Screens, Heat Exchangers, Printing Rolls, Anodes, Rotating Bands, Kettles, Pans, Vats, Road Bed Expansion Plates
C11000 SHEET CHEMICAL COMPOSITION
(%max., unless shown as range or min.)
| Cu (1) |
|
Min./Max. | 99.90 min | - |
Nominal | - | .04 |
(1) Cu value includes Ag.
Note: This is a high conductivity copper which has, in the annealed condition a minimum concuctivity of 100% IACS except for Alloy C10100 which has a minimum conductivity of 101% IACS.
Note: Oxygen and trace elements may vary depending on the process.
C11000 SHEET MECHANICAL PROPERTIES
(measured at room temperature, 68 F (20 C)
Temper | Section Size | Cold Work | Typ/ Min | Temp | Tensile Strength | Yield Strength (0.5% ext. under load) | Yield Strength (0.2% offset) | Yield Strength (0.05% offset) | El | Rockwell Hardness | Vickens Hard. | Brinell Hard. | Shear Strength | Fatigue Strength* | Izod Impact Strength | ||||
| in. | % |
| F | ksi | ksi | ksi | ksi | % | B | C | F | 30T | 500 | 500 | 3000 | ksi | ksi | ft-lb |
| mm. |
|
| C | MPa | MPa | MPa | MPa |
|
|
|
|
|
|
|
| MPa | MPa | J |
Flat Products | |||||||||||||||||||
H02 | 0.04 | 0 | TYP | 68 | 42 | 36 | - | - | 14 | 40 | - | 84 | 50 | - | - | - | 26 | 13 | 0.0 |
| 1 |
|
| 20 | 290 | 248 | - | - | 14 | 40 | - | 84 | 50 | - | - | - | 179 | 90 | 0.0 |
M20 | 0.025 | 0 | TYP | 68 | 32 | 10 | - | - | 50 | - | - | 40 | - | - | - | - | 22 | - | 0.0 |
| 0.64 |
|
| 20 | 221 | 69 | - | - | 50 | - | - | 40 | - | - | - | - | 152 | - | 0.0 |
Rod | |||||||||||||||||||
M20 | 1 | 0 | TYP | 68 | 32 | 10 | - | - | 55 | - | - | 40 | - | - | - | - | 22 | - | 0.0 |
| 25.4 |
|
| 20 | 221 | 69 | - | - | 55 | - | - | 40 | - | - | - | - | 152 | - | 0.0 |
Shapes | |||||||||||||||||||
M30 | 0.5 | 0 | TYP | 68 | 32 | 10 | - | - | 50 | - | - | 40 | - | - | - | - | 22 | - | 0.0 |
| 12.7 |
|
| 20 | 221 | 69 | - | - | 50 | - | - | 40 | - | - | - | - | 152 | - | 0.0 |
M20 | 0.5 | 0 | TYP | 68 | 32 | 10 | - | - | 50 | - | - | 40 | - | - | - | - | 22 | - | 0.0 |
| 12.7 |
|
| 20 | 221 | 69 | - | - | 50 | - | - | 40 | - | - | - | - | 152 | - | 0.0 |
Flat Products | |||||||||||||||||||
H04 | 0.04 | 0 | TYP | 68 | 50 | 45 | - | - | 6 | 50 | - | 90 | 57 | - | - | - | 28 | - | 0.0 |
| 1 |
|
| 20 | 345 | 310 | - | - | 6 | 50 | - | 90 | 57 | - | - | - | 193 | - | 0.0 |
Rod | |||||||||||||||||||
H04 | 0.25 | 40 | TYP | 68 | 55 | 50 | - | - | 10 | 60 | - | 94 | - | - | - | - | 29 | - | 0.0 |
| 6.35 |
|
| 20 | 379 | 345 | - | - | 10 | 60 | - | 94 | - | - | - | - | 200 | - | 0.0 |
Flat Products | |||||||||||||||||||
H08 | 0.04 | 0 | TYP | 68 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
