Product

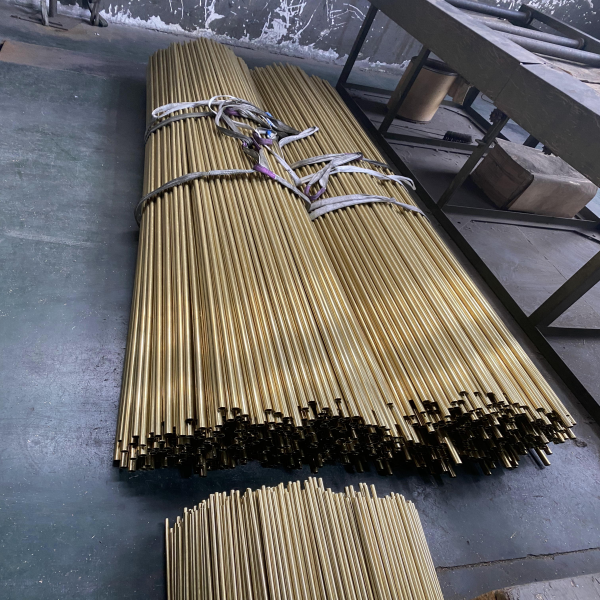

Inhibited Admiralty Brass tubes – C44300 – have high corrosion resistance, and primarily used for tubing of steam condensers cooled with fresh, salt, or brackish water. They are also used for heat exchangers in oil refineries, in which the corrosion from sulfur compounds and contaminated water may be very severe. For industrial processes, it is used for feed-water heaters and heat-exchanger equipment.
Online consultation
Product Introduction
UNS No. | C44300 – BSI No. CZ111 ISO Name CuZn28Sn1 |
Chemical Comp. (%) | Cu 70 ~ 73 / Sn 0.9 ~ 1.2 / Pb 0.07 / Fe 0.06 max / Zn rem / As 0.02 ~ 0.06 |
ASTM Spec. | B 111, B 395 |
ASME Spec. | SB 111, SB 395 |
Applications | Condenser, Evaporator and Heat Exchanger tubes; Distiller tubing. |
Temper | O61 Annealed |
Properties * | Metric | English |
Density | 8.53 g/cc | 0.308 lb/in³ |
Tensile Strength, min. | 310 MPa | 45 ksi |
Yield Strength, min. | 105 MPa | 15 ksi |
CTE, linear | 20.2 10-6/°C @ 20.0 – 300 °C | 11.2 10-6/°F @ 70.0 – 570 °F |
Specific Heat Capacity | 0.09 cal/g-°C @ 20ºC | 0.09 BTU/lb-°F @ 70ºF |
Thermal Conductivity | 109 W/m-K @ 20.0 °C | 64 BTU/ft2/ft/h/°F @ 70.0 °F |
Melting Point | 899 ~ 938 °C | 1650 ~ 1720 °F |
